Arduino Game Player - Sega Master System (1 of 2)

Here's a fun little project I've wanted to work on for a while, an automated system that is able to play console based games.

Initially I thought about making a series of wires that connected my PC to a variety of video game consoles via their control ports but since I have the Arduino I think I can throw together something simpler yet just as effective with it.

There are already a few blogs out there showing how to do this, for example this one on instructables which shows you how to tap into a Snes controller or this one also on instructables which shows you how to do the same to an Xbox 360 controller however this isn't quite what I'm looking to do. I want to connect my Arduino directly to the control port of the system, not to the controller. I will admit though using the Arduino as a controller 'expansion' to allow macros and the like is a pretty cool idea and I may come back to that at some point.

I also want to do more with this project than just connect the Arduino to the target system, I also want it to play the games on the system. I've italicised the word play as I'm not exactly certain how I'm going to define the word play yet. Is just moving the character enough or does the character have to be moved towards the goal? Does the system have to work out the goal or can it be pre-programmed in? Does the path to the goal need to be the optimum one or can it be anything as long as it is in the right direction? Does it need to learn?

As you can see there is a pretty wide scope as to what could be considered playing but for now I'm going to focus on just getting the character moving and worry about more details later.

Regardless of your definition it is clear this project has 2 key parts:

1. Connecting the Arduino to the system.
2. Sending commands to have the character do what we want.

So let's start with the first part.

Connecting the Arduino to the system.

To start off with I'm going to look at the Sega Master System. It's the simplest system I have sitting around in the house and I remember from previous reading that it has a pretty straight forward controller.

I've opened up one of the controllers and here are the results:

Original Sega Master System controller.

The screws taken off and the top flipped over

The PCB boards flipped back down.

As you can see it is pretty basic. We have a D-pad which maps to 4 buttons - Up, Down, Left, Right and 2 action buttons - 1 and 2 (yet I prefer to call them A and B). There are 7 wires coming from the controller 6 of which connect to their own button and then a 7th which connects to them all. I believe the 7th is ground or 5v but I'll confirm this later in the post. Here is the mapping of wire colour to button:

• Brown - Up - 1
• Red - Down - 2
• Orange - Left - 3
• Yellow - Right - 4
• Blue - A (1) button - 9
• White - B (2) button - 6
• Black - 5v or ground - 8

Notice I've put some numbers next to the mappings as well, these are written on the PCB next to each wire connection. I'm not sure what they mean but I thought it might be worth documenting.

Now in the blogs I've linked to they've kept the controller in as part of the circuit but I'm going to remove it from the equation completely. This means we can simplify things as we won't have to use a series of diodes like they do to protect the Arduino which is always nice. I'm also going to do something I don't normally do and take the original controller apart to get the connector from it.

I hate destroying original hardware and normally wouldn't but when I opened up what was going to be my donor connector (an old serial mouse) I found it only had 4 wires running through it, not nearly enough! Thankfully I have about 5 Master System controllers so can afford to donate one to this project and also the soldering sections on the controller are really well spaced apart so I should be able to take it apart and put it back together again without issue.

Right lets de-solder!

Pre-de-soldering. Nice spaced out connections.

Post-de-soldering. Shouldn't be hard to resolder.

And now we have our connector!

I'm still not certain how to check a if a wire is ground or not without the risk of damaging some of the components it is connected to so rather than connecting my multimeter across the wires I've looked on-line for the information on the pin-outs from the controller. This useful page here at http://pinouts.ru tells us that each wire except black, which is in fact ground, puts out a small voltage. When the circuit with ground is complete the voltage drops across the button and the system reads this as the button being pressed. You can test this, and the colour chart above, by touching the wires to the black wire when you have a game running. You should see your character move about as if you were pressing the corresponding button on a controller.

Now to connect it to the Arduino. I was a little confused as to how to do this since there is a voltage coming from all the button wires which is the opposite of what I expected. I thought there would be no voltage on the wires until they were pressed so we could simulate it by connecting it to a digital out pin on the Arduino and setting it to high, this is not the case but not far off it. Thanks to Grumpy Mike's help on my topic in the Arduino forums I was able to get everything hooked up properly.

Turns out we can still connect to the Arduino ports without risk even though there is a voltage coming from the wires. Then we set the pin to be an input when we want it to simulate not being pressed and an output set to low when we want to simulate it being pressed. I'm still a little uncertain as to why this works but here is Grumpy Mike's explanation:

An output low is the same as ground, a low impedance connection to ground.
An input is a high impedance path, therefore is the same as nothing connected at all.

So I hooked it up and give it a try. At first I connected it with LEDs in series with the buttons but the Master System didn't register when they were there so I removed them but kept the resistors just in case.

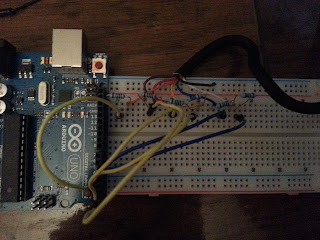

Initial set up with the LEDs in place. Doesn't work.

Revised set up with no LEDs. Not as pretty but works.

Result! It works!

Sending commands to have the character do what we want.

I started off just having the system simulate the A button since this also doubles as the Start button and is the button that need to be pressed to start the game. This worked nicely. I then revised the code to iterate through all the buttons. This also worked nicely! Here's a short video showing the results and also lets you see the code:

Arduino - Sega Master System Controller (1/2)

I'll have the sketch and code available to download in the next post. The system is fairly simple so you shouldn't have any difficulty replicating it without the downloads available if you want to get started on your own controller straight away.

Thanks again to all those who helped and to all those who continue to share information on-line.

Happy computing!
